PTFE banding D27 Shock Absorber Piston with good seal and low friction for shocks
Specifications:
| Various testing machine | Density balance |
| Shore hardness |
| Projector |
| Drawing force testing machine |
| Fatigue testing machine |
| Abrasion testing machine |
| Tensile testing machine |
| Oil immersion testing machine |
| Friction testing machine |
Description:
PTFE banding D27 Shock Absorber Piston with good seal and low friction for various automotive
Our company produces shock absorber pistons with variety types. These shock absorber pistons can be
used in different car shock absorbers.
We have a strong team to research and develop automatic banding machines and annual capacity can
reach more than 20, 000, 000 PCS.
SPEC: D27XD8.5X12
• The piston is exported to Malaysia
• Used for rear shock absorber
• Material: F10.U3.60
• Hardness 65 HRB min
• Inclined holes
• Density is 6.3g/cm3
• With steam treatment
• Net weight is 27.82g
Here is the physical property of banding rings:
Tensile strength≥18MPa
Working temperature＝-80～260℃
Friction coefficient ≤0.20
Coefficient of linear expansion＝1.5*10-4l/℃
Elongation at break≥180％
density＝2.12-2.22g/cm3
hardness＝52-62
We can use the following material to produce discs:
1. PTFE+BRONZE
2. PTFE+CARBON (GRAPHITE)
3. PTFE+CARBON FIBER
4. PTFE+GLASS FIBER
5. OTHER FILLERS SUCH AS MOLYBDENUM DISULFIDE OR EKONOL
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
XIAYI is a professional company which produces different size and design shock absorber pistons.
XIAYI has a complete set of testing equipment which can control the quality for the material.

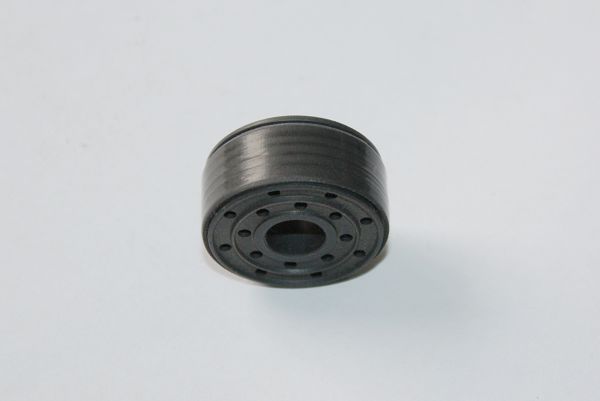

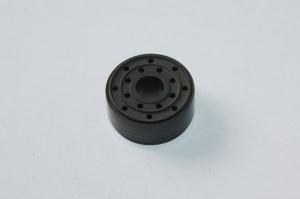

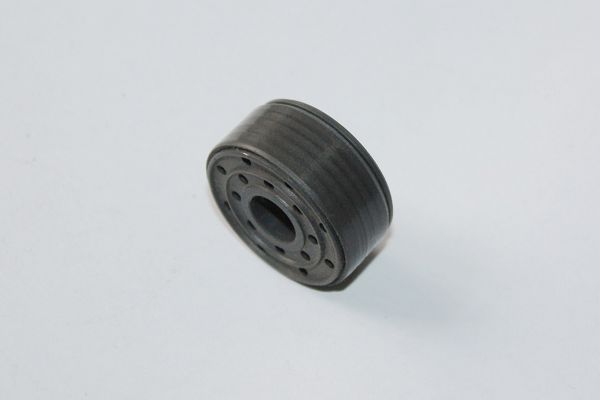

Picture show:
Product Tags:
|
|
Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair Images
|
